より信頼性の高いMEMSセンサー。より高い歩留まり。より迅速な市場投入。

用途に合わせて設計したメンブレンと粘着材が、高精度・高信頼性のオープンポートMEMSセンサー開発を支えます。OEMの開発スピード向上に加え、OSAT企業の製造効率向上と生産量の拡大にも貢献。開発から実装、取り扱い、運用まで、グローバルなメンブレン専門チームが迅速なサンプル提供と高度な技術サポートで支援します。

Features & Benefits
Applications
Product Types
Why Gore
Features & Benefits

Protective Membranes for MEMS Open-Port Sensors

Designed for gas, pressure, and humidity sensing applications, our protective membranes enable stable sensor operation, reduce contamination risks and improve long-term durability.

particle-shielding-red

Particle Shielding

Increase yields and control costs with reliable particle and contamination protection in SMT process and during end-use.

water-protection-red

Ingress Protection

Enable ingress protection up to IP68 lifetime component-level protection, depending upon materials set.

membranes-red

Superior Gas Diffusion

Maintain fast and reliable sensor response time with consistent, high-quality membranes in compact designs.

refresh-2-red

Excellent Reflow Capability

Stand up to high temperature soldering (according to JEDEC) without compromising material integrity or sensor function.

operational-efficiency-red

Manufacturing efficiency

Supports high-volume production with seamless integration and proven durability by offering different product forms.

Applications

Advanced Membranes for MEMS Open-Port Sensor Applications

Our membranes are engineered for easy integration into a range of MEMS open-port sensors including:

  • Gas sensors
  • Humidity sensors
  • Pressure Sensors
  • Ultrasonic sensors
  • LiDAR sensors

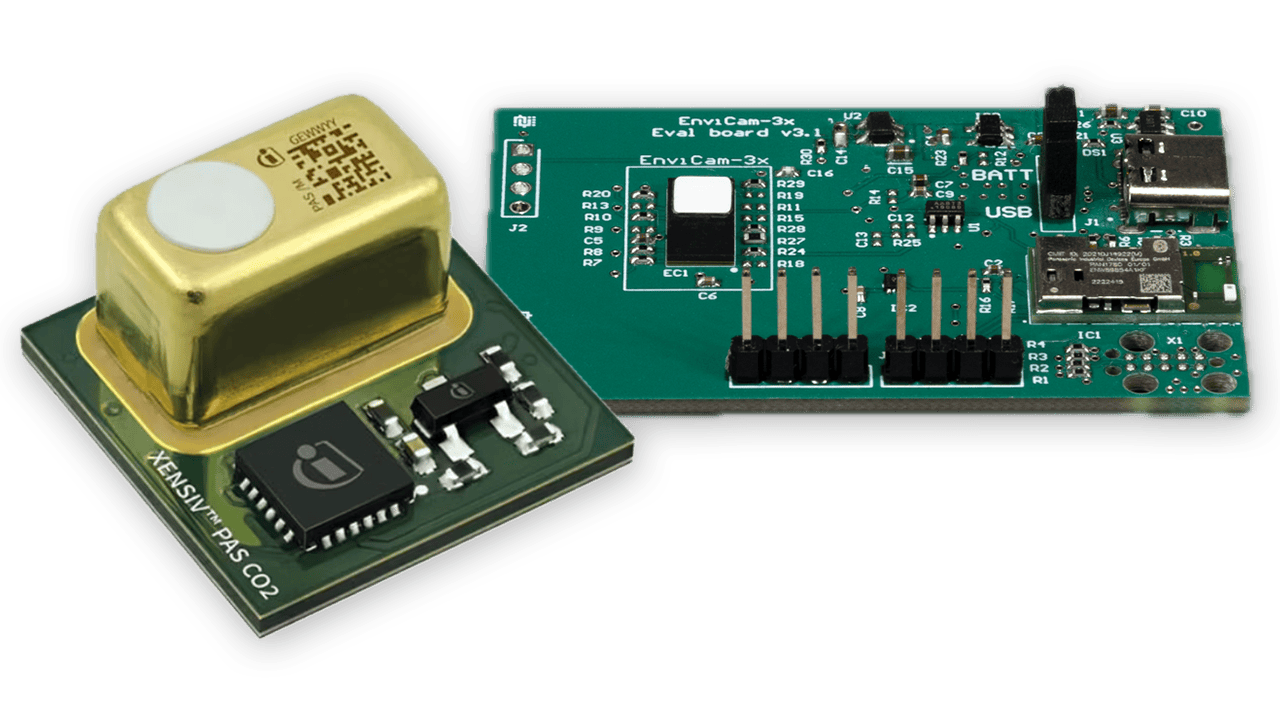

A collage of two MEMS Sensors
Product Types

A Customizable Portfolio

These products are available in a wide range of customizable shapes and dimensions, with a minimum outer dimension (O.D.) of 1.0mm.  Temperature resistance and thickness vary depending on selected material, offering flexibility to meet diverse application requirements. Users can combine membrane properties and adhesive types to create tailored configurations.

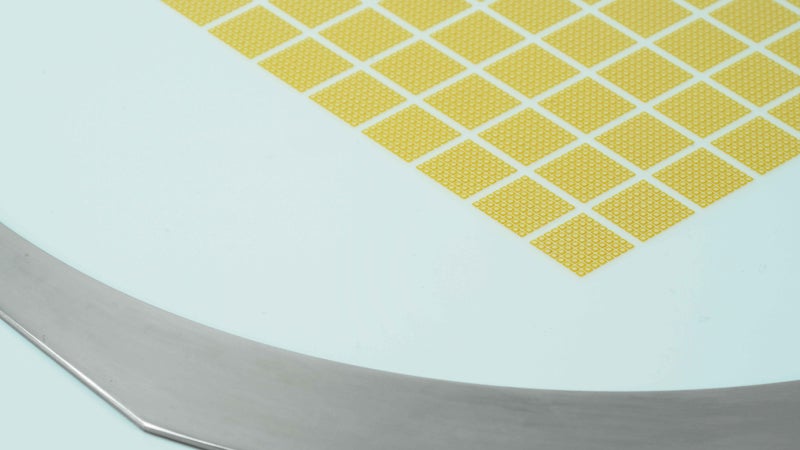

MEMs Vents

Membranes

Oleophobic & Hydrophobic Hydrophobic
Re-flow capable (according to JEDEC)
Non-reflow
Re-flow capable (according to JEDEC)

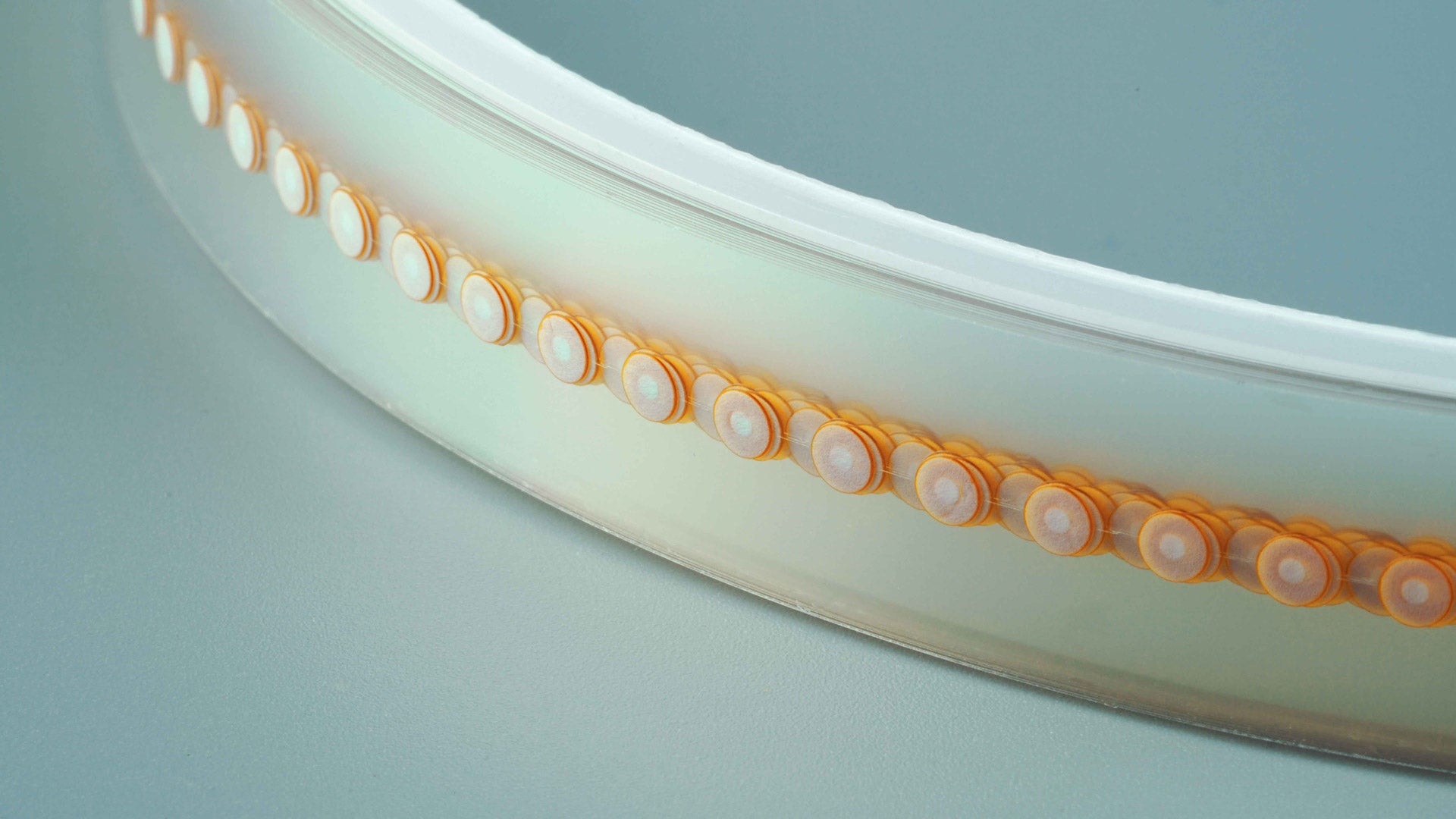

ゴア® MEMSプロテクティブベント – Style 100のロールの拡大写真

Adhesives

SiliconeAcrylic
Re-flow capable (according to JEDEC)
Non-reflow capable (according to JEDEC)
Non-reflow
Why Gore

We work in partnership with you to simplify and accelerate your sensor development processes.

smartphone-red

Application Leadership

Gore is a pioneer in MEMS protection, based on our membrane expertise.

circle-check-red

Reliable Product Performance

OEMs and their suppliers worldwide know they can rely on our highly consistent, high-quality membrane material sets.

map-pin-red

Supply Chain Security

With global R&D and manufacturing resources, we can customize to your specs, and scale to meet the demands and deadlines of high-volume, fast-ramp programs.

Global Supply Vector Red

Global Support

Our local sales and global technical support enable fast and customized sampling, and effective consultations on materials selection, sensor design and manufacturing integration.

技術情報

Tailor membrane and adhesive selection to your design-and-build requirements. Choose from six membranes and three adhesives according to your reflow, diffusion, protection or other technical requirements.

Product NumberMembrane Type/CharacteristicMembrane ColorDiffusion (Response Time)Ingress ProtectionMechanical Stability
Reflow-capable (according to JEDEC)
MMS311
Oleophobic
Black

●

●●●

●●●

MMS321
Oleophobic
White

●●

●●●

●●●

MMS331
Oleophobic
White

●●●

●●●

●●●

MMS341*
Oleophobic
White

●●●

●●

●

MMS381**
Hydrophobic
White

●

●●

●

Non-Reflow
MMS221
Oleophobic
White

●●

●●

●●

MMS231
Oleophobic
White

●●●

●●

●●

*Highest relative diffusion rate material
**Ideal for photoacoustic sensor (PAS) applications


Product NumberAdhesive CharacteristicBond Strength
Reflow-capable (according to JEDEC)
MA321
Silicone

●

Non-Reflow
MA223
Silicone

●●●

MA212
Acrylic

●●



Key

Good

●

Better

●●

Best

●●●

Gore monitors and strives to comply with all regulations applicable to our products.

We have worked with our suppliers to eliminate PFOA from our supply chain. Our products meet EU REACH regulations EU 1907/2006 and EU 2019/2021.

Learn More

Membranes:

Reflow-capable (according to JEDEC)

MMS311
MMS321
MMS331
MMS341*
MMS381**

Non-Reflow

MMSM221
MMS231

Adhesive:

Reflow-capable (according to JEDEC)

MA321

Non-Reflow

MA223
MA212

センサー筐体を守る卓越した保護性能
ゴア® プロテクティブベントは、センサー筐体を外部環境から確実に保護するとともに、筐体内外の圧力を均等化します。粘着材付き、はめ込み型、ねじ込み型の各タイプをご用意しています。

ケーススタディ

/ケーススタディ
Infineon社とゴアのMEMSメンブレンが実現する最先端のガスセンサー
